AVIDHIFI
Geïntegreerde versterker INTEGRA

Since introducing its award-winning phonostage’s and Reference Series amplification, AVID has aimed to trickled down its own established bench marks to lower priced designs.

INTEGRA becomes AVID’s entry level integrated amplifier and like its other products, has been designed to offer class leading performance, build quality and reliability.


Cascading directly from the company’s SIGSUM integrated amplifier, the specifications are no less impressive. Employing a huge 750 VA mains transformer, 88,000uF storage capacity for impressive dynamics, bespoke capacitors and an ALPS volume control.

Appealing to its customers and the growth in vinyl reproduction the INTEGRA includes the award winning Pellar Phonostage, fully compatible with all pick-up cartridges.

Additional features include a dedicated headphone amplifier, Mono and Mute functions.

Integra

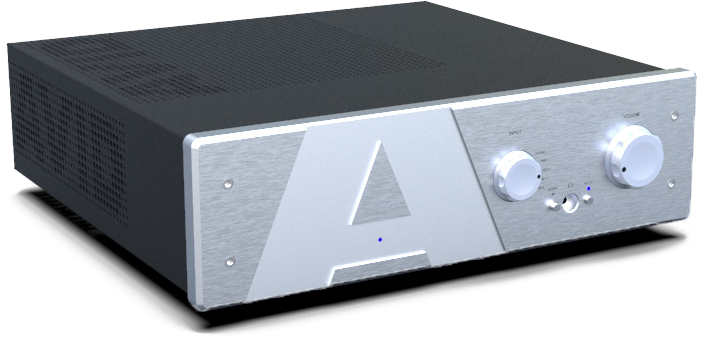

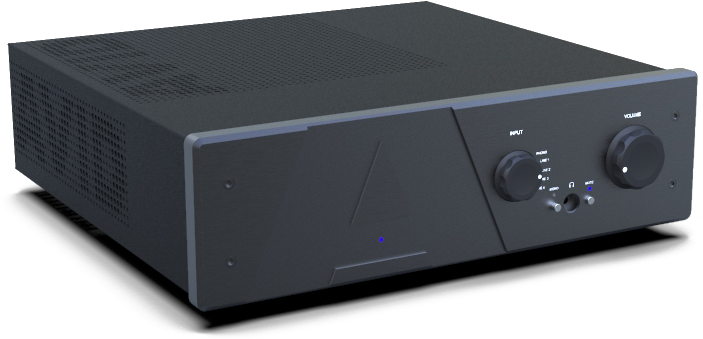

In keeping with all our products, all manufacturing and testing is done within our factory in Kimbolton near Huntingdon, UK and is available in either Black or Silver finishes.



Specificaties

POWER
Output: 90W 8 Ohms
Harmonic distortion: 0.003% (80% power 8 Ohms 1kHz)
Loudspeaker Impedance: 4-16 Ohms

FRONT PANEL CONTROLS:
ALPS RK 27 2 Gang Manual Volume Control
Selector Switch
Mute Switch
Mono Switch
Headphone Socket

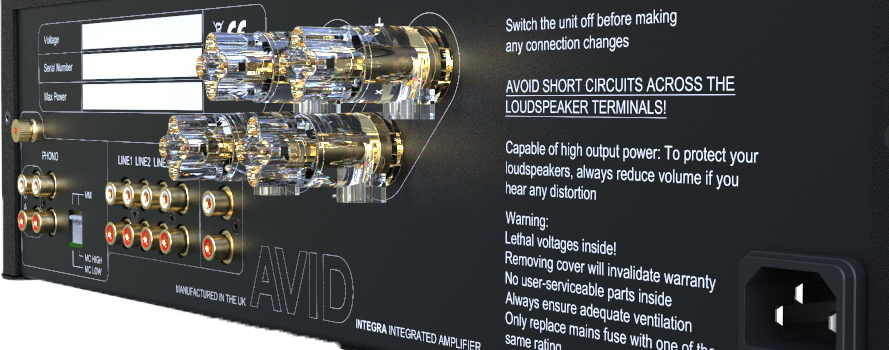

INPUTS
PHONO: 2x RCA
Gain: 48dB – 60dB – 70dB
Input resistance: 47k - Custom (500 Ohm Loading Plugs Supplied)
Input capacitance: 100pF
Distortion: Less than 0.001%
RIAA Accuracy: 5Hz - 70kHz +/-0.5dB (Neumann HF correction)
Noise (A weighted): MM –81dB MC –67dB (high setting)
Channel separation: < -85dB 5Hz – 20KHz
LINE: 4x RCA Line Inputs
Nominal sensitivity: 340mV Volume Full 100W
Input resistance: 82 kOhms
Maximum input: 11 Vrms
Frequency response: 5Hz—over 80kHz ± 1dB
Signal/noise ratio: 100 dB (Awtd) 50 W, ref. 1V input

OUTPUTS: 4 x Gold Plated High Current
Line level output: 2x RCA
PREAMPLIFIER OUTPUT
Nominal output level: 11 V
Output impedance: 47 Ohms
HEADPHONE OUTPUT
Maximum output level into 600 Ohms: 10 V RMS
Output impedance: 1 Ohm
Load range: 20 — 600 Ohm

POWER CONSUMPTION
Input voltage (region dependent): 115V or 230V AC
Power Consumption (Max): 59 Watts No Signal Idle
: 800 Watts Clipping 4 Ohm Load
Mains input Socket: IEC C14 Type
Mains input Cable: IEC C13 Type

DIMENSIONS AND WEIGHTS
Dimensions (including output terminals): 470 x 495 x 155mm (WxDxH)
Net weight: 22.9kg (50lb)
Packaging: 630 x 630 x 260mm (WxDxH)
Shipping weight: 25.5kg (56lb)
