Geïntegreerde versterker SIGSUM

The Sigsum Integrated Amplifier is a logical development of our cascading product design. In all our designs, we are driven by sound quality and an uncompromising approach to offer the best in category.

Sigsum shares many of the extremely high-specification components found in our Reference electronics, every attribute to the highest order. Within an integrated amplifier there are four main building blocks; power supply, pre-amplifier topology, power amplifier and volume control. Like a jigsaw puzzle, every part needs to be perfect and then fit together perfectly, the weakest part letting everything down.

In our obsession to offer the best we have not fallen short on any of these building blocks that make up this integrated amplifier. Power Supply; massive 1.1KVA mains transformer and large capacitors gives prodigious reserves and the sound has slam and low frequency control. Pre-amplifier topology; bespoke circuit design and components allowing faithful reproduction with limitless headroom. Power amplifier; directly scaled down reference power amplifier with the ability to drive all loudspeakers comfortably. Volume control; retaining possibly the world’s best control, the ALPS RK50 allows you hear every detail with such life and realism.

And not forgetting our vinyl roots the built-in phonostage is the same as our award winning Pulsus phonostage. A passive RIAA (with Neumann HF correction) circuit using high-end capacitors, helps maintain linearity of reproduction and its own 35va mains transformer giving independent power to each channel. Fully flexible for any cartridge with gain and resistance easily adjustable.

Like all our product's, Sigsum is passionately manufactured within our own facilities, everything from PCB assembly, testing and quality control to the high quality casework ensures a long-lasting reliable product, allowing you to rediscover your music collection.

In a world of specifications and audio jewellery the Sigsum is old school passionate design done right. Just listen, you'll find no fake performance, just the ability to strike fire in the heart and tears of emotion.

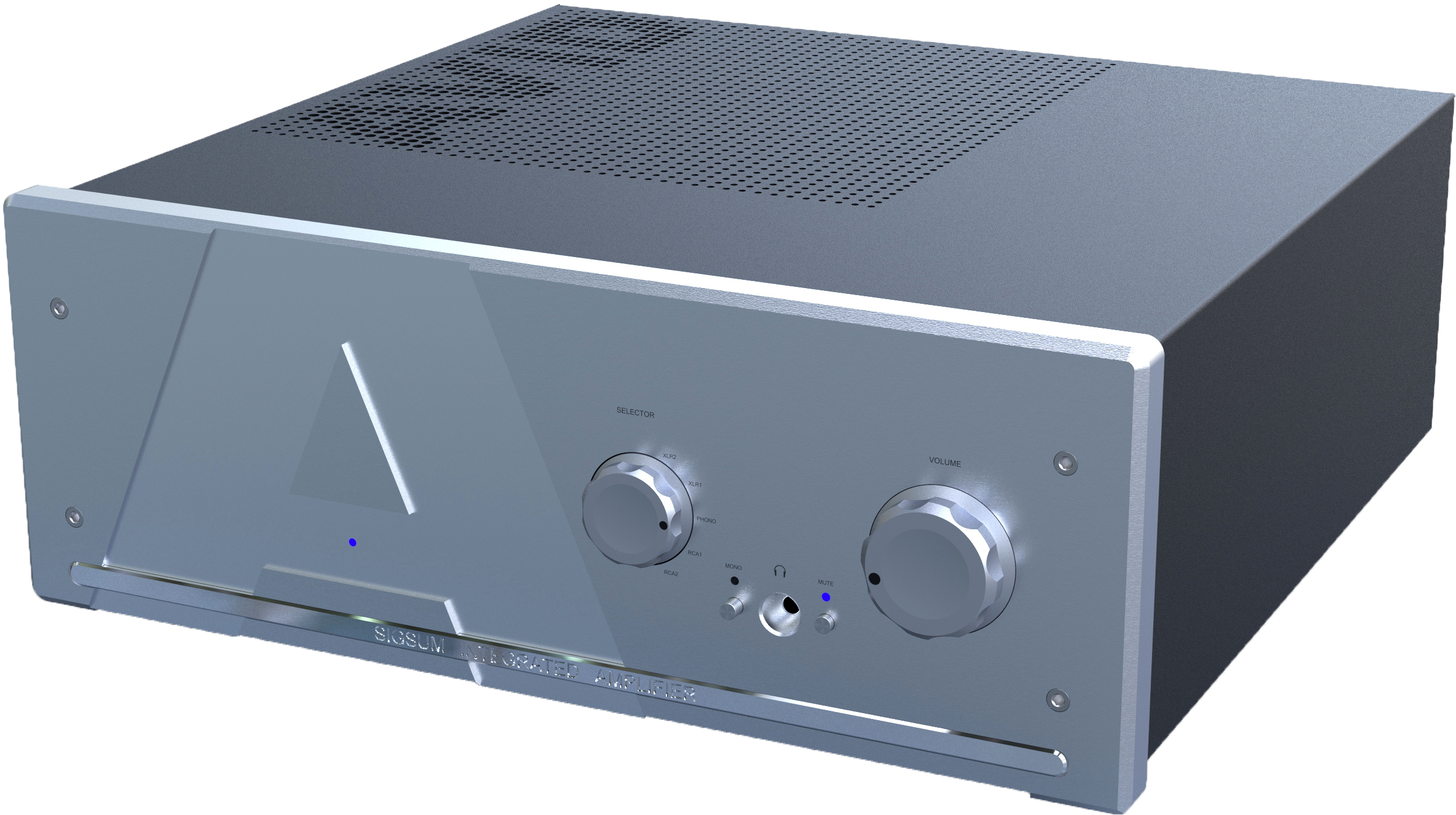

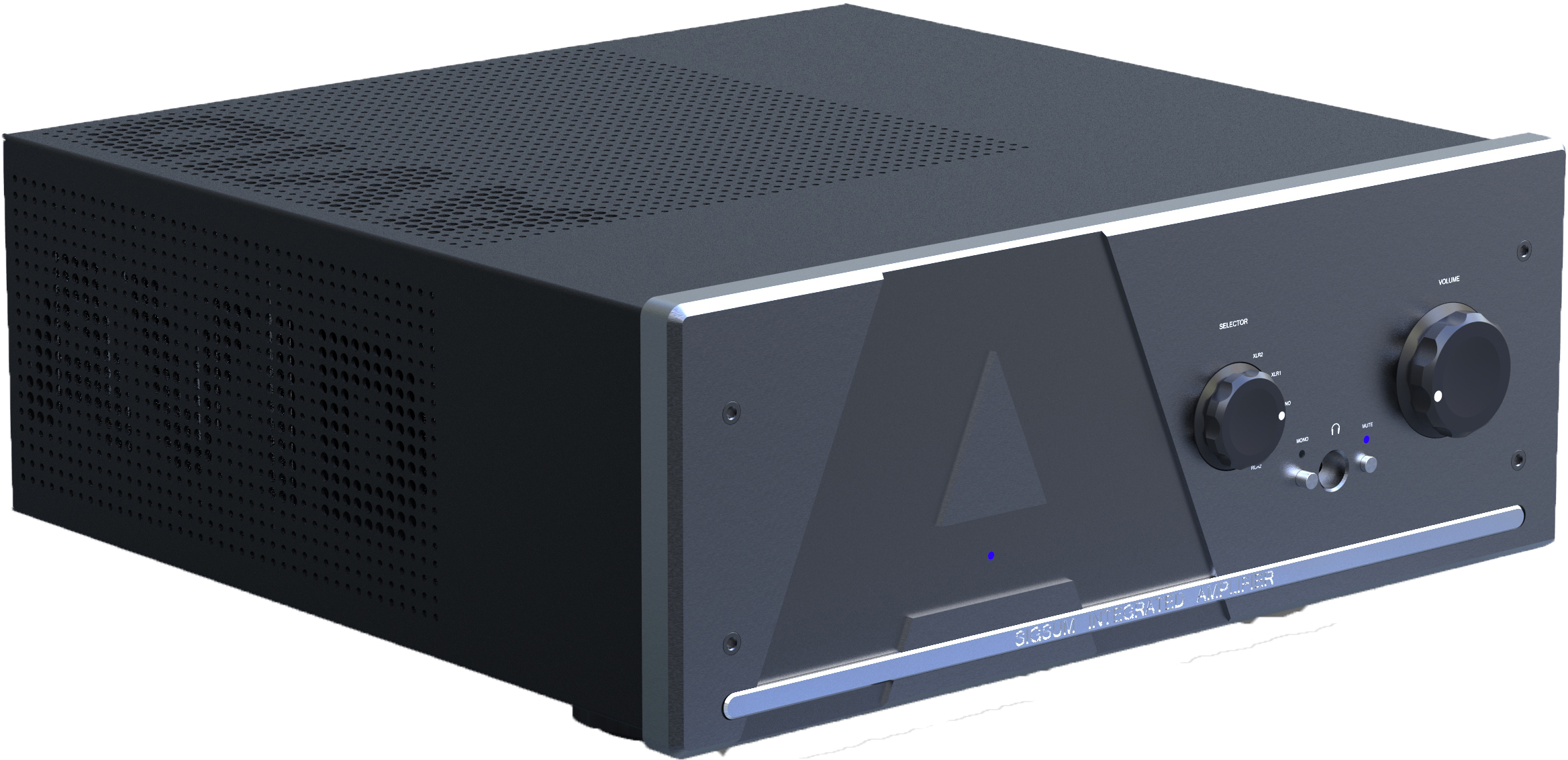

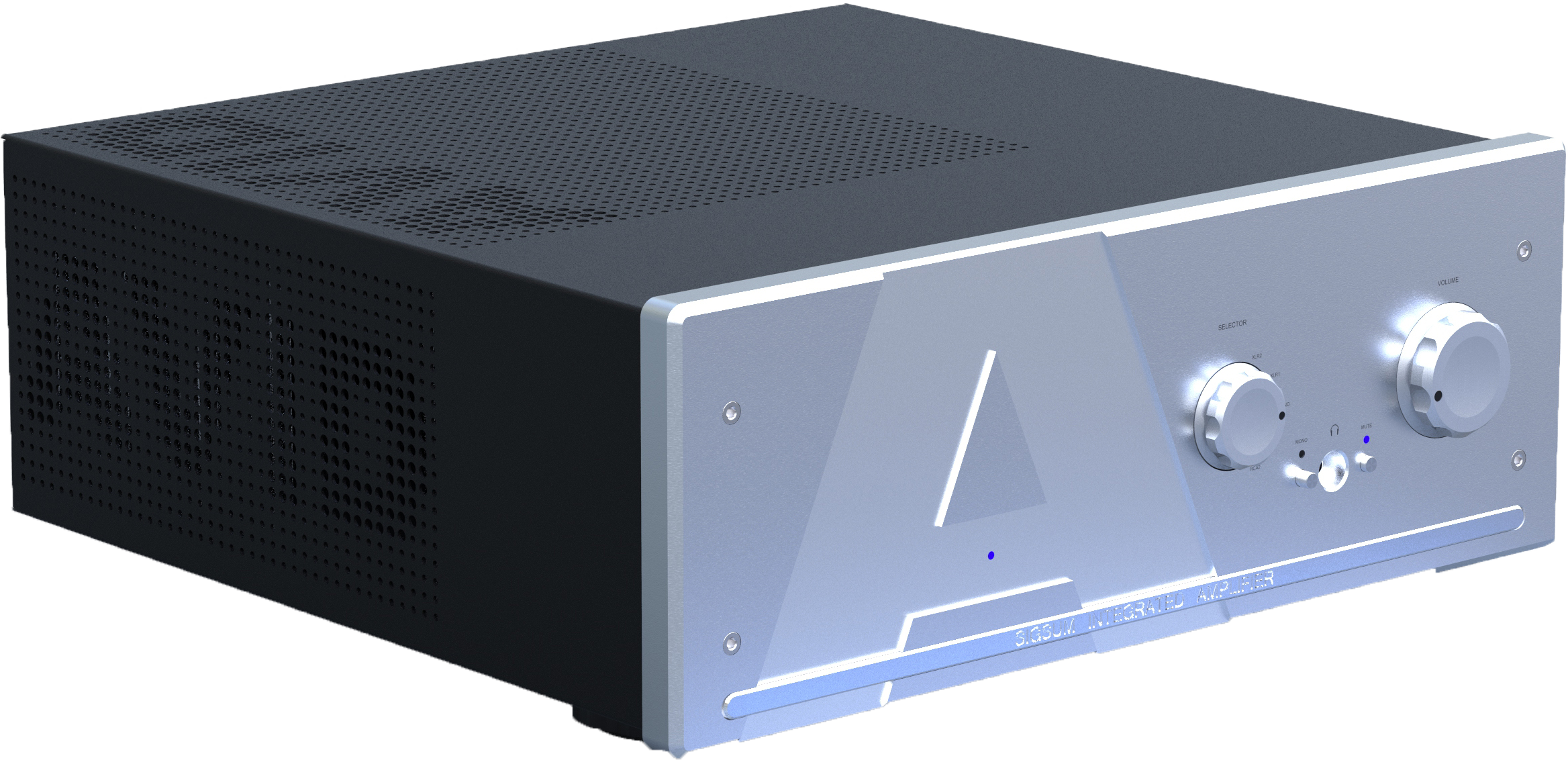

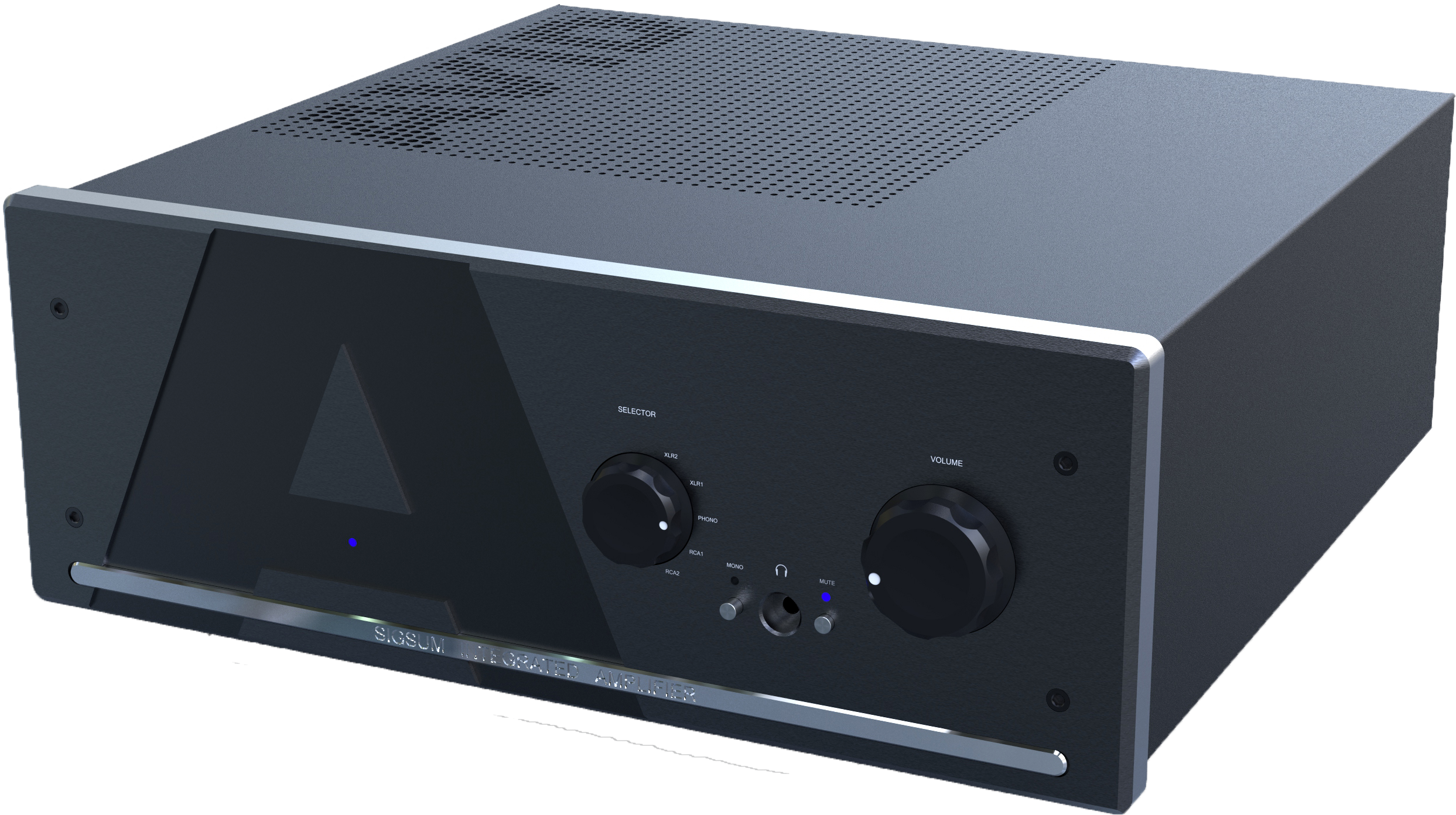

In keeping with all our products, all manufacturing and testing is done within our factory in Kimbolton near Huntingdon, UK and is available in either Black or Silver finishes.

Specificaties

POWER
Output: 110W 8 Ohms
Harmonic distortion: 0.003% (80% power 8 Ohms 1kHz)
Loudspeaker Impedance: 4-16 Ohms

FRONT PANEL CONTROLS
ALPS RK 50 2 Gang Manual Volume Control
Selector Switch
Mute Switch
Mono Switch
Headphone Socket

INPUTS
PHONO: 2x RCA
Gain: 48dB – 60dB – 70dB
Input resistance: 100R – 300R - 500R – 1K – 5K – 10K – 47K
Input capacitance: 100pF – 200pF – 500pF
Distortion: Less than 0.001%
RIAA Accuracy: 5Hz - 70kHz +/-0.5dB (Neumann HF correction)
Noise (A weighted): MM –81dB MC –67dB (high setting)
Channel separation: < -85dB 5Hz – 20KHz
Power supply: Independant 35va transformer
LINE: 4x XLR 4x RCA
Nominal sensitivity: 340mV Volume Full 100W XLR
Input resistance: 33 kOhms XLR 82 kOhms RCA
Maximum input: 11 Vrms XLR
Frequency response: 5Hz—over 80kHz ± 1dB
Signal/noise ratio: 100 dB - XLR/RCA (Awtd) 50 W, ref. 1V input

OUTPUTS: 4 x Gold Plated High Current
Line level output: 2x RCA
PREAMPLIFIER OUTPUT
Nominal output level: 11 V
Output impedance: 47 Ohms
HEADPHONE OUTPUT
Maximum output level into 600 Ohms: 10 V RMS
Output impedance: 1 Ohm
Load range: 20 — 600 Ohm

POWER CONSUMPTION
Input voltage (region dependent): 115V or 230V AC
Power Consumption (Max): 59 Watts
No Signal Idle: 800 Watts Clipping 4 Ohm Load
Mains input Socket: IEC C14
Type Mains input Cable: IEC C13 Type

DIMENSIONS AND WEIGHTS
Dimensions (including output terminals): 471 x 500 x 190mm (WxDxH)
Net weight: 31.2kg (69lb)
Packaging: 600 x 570 x 260mm (WxDxH)
Shipping weight: 34.5kg (76lb)
